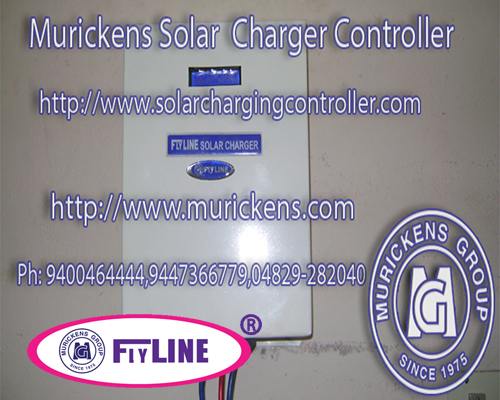

FLYLINE SOLAR CHARGE CONTROLLER

Flyline Pulse Width Modulation (PWM)( MPCT )Pulse Width Modulation (PWM) is an effective and cheapest means to achieve a constant voltage battery charging from a PV module used in a solar system. The PWM controller regulates the current from the solar panel and boosts or reduce the current according to the battery’s condition and recharging needs. When a battery voltage reaches the maximum point, the PWM algorithm slowly reduces the charging current to avoid heating and gassing of the battery, yet the charging continues to return the maximum amount of energy to the battery in the shortest time. The result is a higher charging efficiency, rapid recharging, and a healthy battery at full capacity. In addition, this new method of solar battery charging promises some very interesting and unique benefits from the PWM pulsing. Flyline PWM base solar charger is a " Zero Drop" MPCT (we get 100 % efficiency) back to back PWM charging technology with Auto detection 12v/24v (automatic sensing). We have low and high power solar chargers with LCD display and LED indications. PWM Self-regulates voltage, temperature and it has the Ability to recover lost battery capacity and disulfate's a battery. It can reduce battery heating and gassing that will give the battery more life span. This unit have almost all advanced features.

Solar charge controller is essential for controlling solar panel out put power and battery input and out put power. It act as a guard for solar power conditioner system. Murickens group adopt German technology in FLYLINE PWM and IGBT solar chargers. Flyline solar charger is almost equal to the performance of MPPT . Our product has international quality approvals.

FLYLINE Pulse Width Modulation Solar Charging Controllers (PWM) Common Features

► The main advantage of flyline solar charger is high efficient " Zero Drop" (we get 100 % efficiency). ►German Technology assures the quality of flyline solar charger MPCT ( maximum power converting technology ) n► ISO 9001- 2008 certified ► It is commonly used products. ► This charging controllers are used for smaller and medium power controlling units. ► The technical features are same with IGBT. ► The control system controls the whole system taking care of battery over charging cut off, deep discharging cut off, Protections in Battery reverse, PV reverse, Overload and Short circuit. ► Our product connection diagram printed on it.►Micro controller base. ►LED, bar glass or LCD - display-battery voltage, load on/off, battery condition charging on/off.in 12/24 V ►Up to 80 amp Auto detection for 12v/24v (automatic sensing)

FLYLINE PWM/MOSFET SOLAR CHARGER CONTROLLER TECHNICAL FEATURES
Switching
Zero drop back to back PWM  MOSFET base
Nominal battery voltage
12 V   to 48 V DC
Maximum out put amp
4AMP- 100 AMP
Stand by consumption
less than 1w
Charging REG
2  stage
Battery tem combination
5MV@40DIG
Product Display
LED, bar graph or LCD
Max. panel  input voltage
16V@12V
Battery input
 8 to15 Volt (for 12 V).19 to 30 Volt ( for 24 V)
Panel  input
 10 to30 Volt (for 24 V).21 to 60 Volt ( for 24 V)
Battery input
 32 to 60 Volt ( for 48 V)
Panel  input
 40 to 120 Volt ( for 48 V)
Mobile charging
USB & DC SOCKET in small capacities
DC LOAD
UN REGULATED
Efficiency
100 %

Insulated Gate Bipolar Transistors Flyline Solar Charger ( IGBTs) It is important that we choose the correct charging controller for our solar system. And IGBTs are one of the best options. IGBTs are most suitable for higher voltage high power i.e above 100 volts and above 50 amps. An IGBT is a metal oxide semiconductor gate structure, basically a bipolar junction transistor (BJT). IGBT technology is similar to that of MPCT technology.. Flyline IGBT Solar Charging Controllers common features ► It is used for high voltage regulations. ►German Technology assures the quality.► ISO 9001- 2008 certified flyline solar charger ► It is commonly used products. ► IGBT charging controllers are used for medium and higher power controlling units. ► The technical features of MOSFET and IGBT are same. ► The control system controls the whole system taking care of battery over charging cut off, deep discharging cut off, Protections in Battery reverse, PV reverse, Overload and Short circuit. ►Micro controller base. ►LCD display-panel voltage , battery voltage, out current, solar in use, direct mains, saved unit

FLYLINE PWM/IGBT  SOLAR CHARGER CONTROLLER TECHNICAL FEATURES


Switching
Zero drop back to back PWM  MOSFET base
Nominal battery voltage
12 V   to 48 V DC
Maximum out put amp
4AMP- 80 AMP
Stand by consumption
less than 1w
Charging REG
2  stage
Battery tem combination
5MV@40DIG
Product Display
LED, bar graph or LCD
Max. panel  input voltage
16V@12V
Battery input
 8 to15 Volt (for 12 V).19 to 30 Volt ( for 24 V)
Panel  input
 10 to30 Volt (for 24 V).21 to50 Volt ( for 36 V)
Battery input
 32 to 60 Volt ( for 48 V)
Panel  input
 40 to 120 Volt ( for 48 V)
Mobile charging
USB & DC SOCKET in small capacities
DC LOAD
UN REGULATED
Efficiency
100 %
