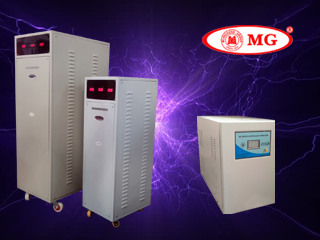

MG SERVO STABILIZER

Murickens servo stabilizer is of great use to hospitals and labs where the machinery used should give a constant result all the time. Results of equipments can vary if the voltage of current varies. Murickens servo stabilizer always keeps the voltage constant whether it is low or high voltage.

MG SERVO STABILIZER FEATURES:

► It act as a guard for every electronics equipments ► Quick, steady and accurate correction of voltage output 230V for Single phase and 400V for Three phase. ► ISO 9001- 2008 quality certifications ► Despite load current variations - Balanced output voltage. ► Irrespective of input imbalance. ► Fully automatic. ► Reduces heating and minimizes losses. ► Over Load Protection. ► Constant temperature maintained by oil or air cooling system.► Boost-up transformer based model.► Digital display for input and out put volt & irregularities. ► By using servo stabilizer we can improve over all production quantity and quality. ► In medical field, it is must for getting accurate lab test results.► Overall energy saving - above 98% efficiency Increased life of your equipment. ► Compact in size, etc. ► Custom made servo voltage stabilizers available as per customers requirement.► Some of the extra adoptable features are Bypass Mechanism ( change over switch ) Inbuilt Isolation Transformer, Time Delay, Wheel mounting.

SL.No Parameter Single Phase Unit Three Phase Unit
1 Rating 1 KVA to 15 KVA 6 KVA to 100 KVA
2 Input Voltage Range a) 160V -270V (Standard) 300-450V(Standard)
    b)120V-270V(wide-range) 240V-450V(wide-range)
3 Nominal Output Voltage 230V 400V
4 Output Voltage Accuracy ± 1% ± 1%
5 Line Frequency Variation 47Hz-53Hz . 47Hz-53Hz
6 Control Digital / Analogue Digital / Analogue
7 Response Time 10 ms. 10 ms.
8 Voltage Correction Rate
1. Air Cooled 35V/Sec. 35V/Sec.
2. Oil Cooled 25V/ Sec 25V/ Sec
9 Efficiency 97% 97%
10 Protection a) Automatic Switch-Off against
- Under / Over-Voltage
- Over-Load & Short - Circuit
- Single Phasing
11 Winding Pure Copper Winded Pure Copper Winded
12 Waveform Pure Sine Wave Pure Sine Wave
13 Power factor Nil Nil
14 Mounting Free on wheel Free on wheel

TYPICAL APPLICATIONS:

Which is commonly used in places where controlled and constant voltage, like Hospitals, Laboratories, various life saving and testing equipments, Pharmaceuticals, Research Institutes, Data Processing Units, Food Processing Units, Offices and residences/housing apartment etc.

Available in the range of .5 KVA to 95 KVA
