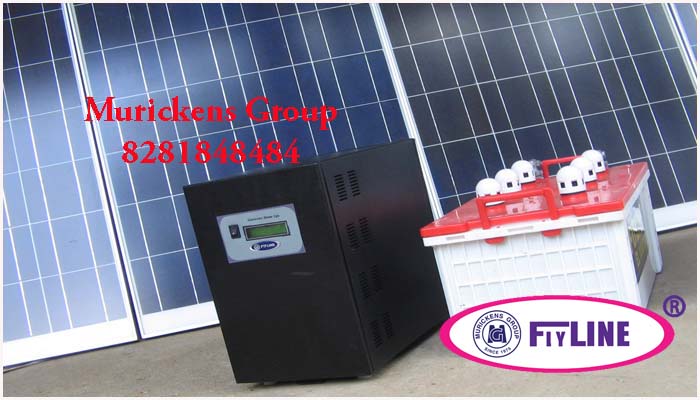

FLYLINE SOLAR UPS

Murickens, always adopt new technologies for the need of tomorrow. We introduced have battery-less renewal energy PCUs with the working range of 72V to 240V of solar panel . It is an on-grid power compensating system, which can be upgraded at our discretion. Through the system we get full utilization of solar energy. We developed this system at par with Kerala climate. Through this system we can customize our budget with the option of future up-gradation.This system includes Flyline solar BPCU and solar panel. God’s own country Kerala, is wealthy of sufficient sun light and hence this system is much suitable for Kerala. We have made a place of our own in the field of solar based power units since our installation in 2000 and have done thousands of solar power units in many places including Kerala Agriculture Research University, Malapuram, The CISF 7th battalion military camp, Hyderabad, International Airport ,Karipoor, Govt. of India, Dept. of Space, Sreeharikotta, Central Marine Fisheries Research Institute,Cochin, Vallarpadam Container Terminal (IGTPL) etc.and many other private organisations. For a trouble free service of the system, it is essential that the installation should be undertaken by a well qualified and experienced technical person to get 100% out put of the system and to avoid unnecessary expenses.We have made a place of our own in the field of solar based power units since our installation in 2000 and have installed thousands of solar power units in different fields including

The Agricultural University, Malapuram, Government of Kerala,The CISF 7th battalion military camp, International Airport, Karipoor ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL),TCS Info Park Cochin etc which are only a few among our valued and reputed clients in addition to many other esteemed private organisations. For the trouble free functioning of the system, it is highly essential to take the advises and supervision of a qualified and experienced technician throughout the installation of the unit.

FLYLINE SOLAR POWER CONDITIONER WORKING THEORY

Murickens’ Group develops this unit meant for commercial purposes and daytime use. Here we can avoid storage batteries, save space and money. Through this system we get full efficiency of solar power what we use for generating power. This model is a compensating type that means shortage current of solar panel, will be taken from grid-line. If solar energy is sufficient then the total output load will operate on Flyline Solar Inverter. When solar energy is weak then the inverter will take balance AC source from grid line. When there is no solar energy online load is working on grid line, when solar power is return the system sends power and utilize it automatically. Above all operations will work with a zero transfer time..

Flyline Batteryless online Solar PCU Technical Features.
Rating 5 -8 KVA 10 KVA 15-30 KVA 50 KV 100 KVA
Solar input Volt 110 -210 v 130-235v 255-510 v 355-750 v 350-700
DC Voltage 96 V 120 V 240 V 360 V 360 V
Grid Input Single or 3 phase
Solar Charger MPPT OR PWM
Inverter type IGBT based
Waveform Pure Signwave
Output Voltage 230 v (single phase) & 415 volt (3 phase)
Frequency 50 Hz
Efficiency 90%
Overload capacity 100 -120% in 30 seconds and 125 -150% for o second
Operating Mode Solar Hybrid Online
Changeovertime 0 Seconds
Operating temp 0-50 deg.celsius
Humidity 95% non conditioning
Cooling Air cooling / Oil cooling
LCD Display Solar voltage, current and power, output voltage and current, grid voltage and current, battery voltage and current, input and output frequency
Fault display Fault display for battery and panel reverse polarity. Output overload.
Protections All protection with MCB
Alarm Overload and battery low
