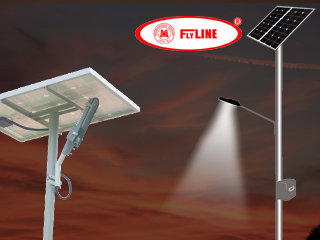

FLYLINE SOLAR STREET LIGHT

Flyline solar streetlight uses led for lighting the street light/parking grounds/gardens instead of cfl or high power sodium vapour lamps. Solar streetlight is cost effective and sustainability and low maintenance. Solar streetlight has automatic control system like dusk to dawn lighting system. Solar streetlight gives more brightness and long life than the cfl. Solar streetlight is now widely used on the houses and their gardens. If we use solar streetlight system, then there will be no tension of switching on and off the lights or of not having electricity. In the case of garden or ground streetlight no underground cabling and forget the tension and headache made by it. Overall the solar streetlight system is free of maintenance costs and loss of power due to cable cut, or damage due to any other problems. We have diff capacity of solar LED lights as per the requirement.We have made a place of our own in the field of solar based power units since the installation from 2000 and have done thousands of solar power unit installations in many places including Agricultural University in Malapuram, Government of Kerala,CISF 7th battalion military campin Karipoor Airport, ISRO Sreeharikotta, Marine Fisheries Dept of India, Vallarpadam Container Terminal (IGTPL) etc.it is most important that the installation should be undertake by a well experienced and qualified technical expert to get 100% output of the system and avoid unnecessary expenses and for a smooth and trouble free function of the system. The maximum solar power consumption is depending up on that you turn to an experienced technical advice.

SOLAR STREET LIGHT INFORMATIVE & INSTALLATION VIDEOS




FLYLINE SOLAR STREET LIGHT MORE IMAGES:-CLICK HERE

FLYLINE SOLAR STREET LIGHT PDF:-CLICK HERE

FLYLINE SOLAR STREET LIGHT MORE VIDEOS:-CLICK HERE

FLYLINE SOLAR STREET LIGHT FEATURES

* DC volt out put 12V or 24 V. *German Technology assures the quality of flyline solar garden light.*MNRE approved. * ISO 9001- 2015 quality certified product * Flyline solar luminary cabinet is weather proof so it is an Ideal for Streetlight, garden light, Gate light, and park light * It have automatic control system (Dusk to Down) * It is available in 3w, 6w, 9w, 12w, 18w and above. * Dimmer option after 6 hours.*By using powerful LED we get good brightness for the light.* Its power consumption is very low and get very good back up. * No need of wiring, so we can forget the headache of wiring and its expense. * With the cost of AC cable and wiring, you can install a fly line full light system, with out electricity bill. * We can charge the battery with the help of solar cell. * Its Initial cost is also very low. * No further expense. * Very low maintenance. *Specially designed compact control system protect the whole unit.

MODELS SSL-3 SSL-6 SSL-9 SSL-12 SSL-18 SSL-24 SSL-30
LED Capacity 3 W 6 W 9 W 12 W 18 W 24 W 30 W
Lamp/Luminary Type LED LED LED LED LED LED LED
Operating Voltage 12 V 12 V 12 V 12 V 12 V 12 V 12 V
Power Consumption 0.25 A 0.5A 0.8A 1 A 1.6A 2 A 2.6A
Lumens 375 -400 lm 780 -800 lm 1125 -1200 lm 1500 -1600 lm 2250 -2300 lm 3000-3100 lm 3750-3800 lm
Luminary Equal to 10 W CFL 25 W CFL 35 W CFL 50 W CFL 70 W CFL 100 W CFL 125 W CFL
Driver technology Micro Controller Based PWM C.C.C.V.
Lamp Efficiency >90% >90% >90% >90% >90% >90% >90%
Working Temp. 30° C to 50° C
Working Life 50,000 to 1,00,000 Working Hours
Operation model Automatic Dusk to Down & manual
Light Fixture Water proof Unbreakable Plastic or Metal
IP Rating IP 65
Solar photovoltaic Module 10 W 20/30 W 30/50 W 50 / 75 W 77/100 W 75/100 W 100/125 W
Module Mounting Structure M.S. Stand with corrosion resistant & silver painted or powder coated
Battery Voltage 12 V 12 V 12 V 12 V 12 V 12 V 12 V
Battery capacity 7 Ah 14 Ah 26 Ah 26/50Ah 50/75 Ah 75 Ah 75/100 Ah
Battery Type Sealed Sealed Sealed Sealed/Acid Tubular
Autonomy From a full charged battery get 16 to18 hours back-up continuously
Battery Box M.S. Box with Silver painted/ powder coated
Pole M.S. pole with Silver painted and 4 height
Charger Technology Micro controlled PWM Based
Power source Sun light from 6.30 am to 6.30 PM
Warrantee ONE YEAR


HOMELIGHT FEATURES:

► DC volt out put 12V or 24V. ► Ideal for Home, House boats and playground lighting and working DC Fan and Music system and mobile charger. ►It is manually controlled system. ► Its Power consumption is very low and get very good back up. We can charge the battery with the help of solar cell. ► Its Initial coast is also very low. ► No further expense. ► Low maintenance. ► It is a kind of small inverter and anyone can afford its price.

SOLAR HOME LIGHT TECHNICAL SPECIFICATION:

FLYLINE SOLAR HOME LIGHT
Out put Direct Current ( DC) 12 V or 24 Volt
LED Light Source 1 W, 3W, 6W, 9W, 12W, 18W, 36W and above
CFL Light Source 6W, 9W, 12W, 18W, 36W and above
DC Fan 15W and above with 3 and 4 leaf
Light Fixture Un Breakable Plastic/metal with powder coating
SPV module Depended up on capacity of light
Driver technology Micro Controller Based C.C.C.V.
Battery 12V/flyline lead Acid Battery
Inverter Advanced control system with 12V/24V and different capacity's
Efficiency >90%
Operation Manual
