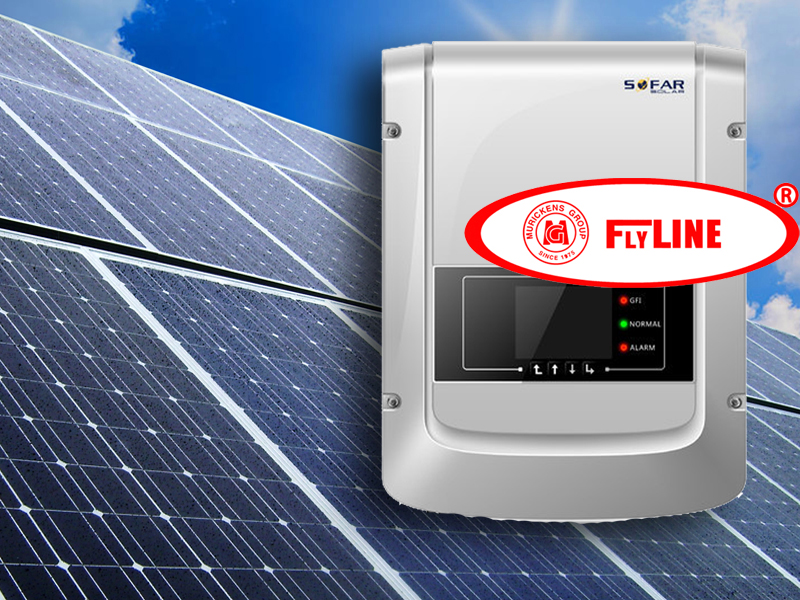

SOLAR ONGRID INVERTER

The Murickens Group that started the Electronics products business in 1990 and the Group has been developing business in the Solar Field since 2000.Solar energy is divided into two categories based on grid connectivity, namely On Grid Solar Power plant and Off Grid Solar Power plant .Connected to the electricity line is On Grid Solar which does not have battery backup.

The electricity generated by the system is exported to the grid used to operate the various devices and most of the electricity is exported to the Grid at any time after use. But system can only be exported when electricity in live. If the grid line fails, the power will be completely cut off, Solar power system works on the conversion basis, i.e solar light energy to dc electric energy with the help of mono or poly photovoltaic cells and direct power to indirect current with the help of solar inverter. One of the things to keep in mind when installing a solar system is that we need to install solar panels according to the amount of electricity we need.

MNRE SUBSIDY SCHEME FOR ON-GRID:-

Subsidy Scheme available here


SOLAR ON-GRID INVERTER INFORMATIVE & INSTALLATION VIDEOS




FLYLINE ON-GRID INVERTER MORE INSTALLATION VIDEOS:-CLICK HERE

FLYLINE ON-GRID INVERTER MORE IMAGES:-CLICK HERE

FLYLINE ON-GRID INVERTER PDF:-CLICK HERE


INSTALLATION PROCEEDINGS:-

(1) Apply for Feasibility certificate from concerned electrical section office
(2) Installation jobs
(3) Apply to Inspection department of KSEB
(4) Commissioning of the Power Plant


COMMON FEATURES OF FLYLINE SOLAR ON-GRID INVERTER

► Real time precise MPPT algorithm ► Wide input voltage operation range ► Flexible and economical system solution. ► Free site selection with IP65. ► DC input voltage up to 1000V. ► Internal DC switch ► Transformer less ► Compact design. ► Multi MPP controller ► MTL - String ► Ethernet / RF technology / WiFi- OPTIONS ► Easy access. ► Easy data searching ► Easy configurations ► Easy installations ► Extra protection for spike loads. ► Complaint free unit ► Power saving mode during night time ► Special design to reduce Dc / Ac conversion loss ► Conversion possibility to battery system with extra module.

Technical Features of Flyline Features of solar on-grid inverter


Inut Data

SOFAR

3.3KTL-X

SOFAR

5KTL-X

SOFAR

8.8KTL-X

SOFAR

11KTL-X

SOFAR

12KTL-X

Protection Devices











Max.PV input power

3600W

6000W

9600W

12000W

14000W

Max DC power for single MPPT

3550W

4500W

6250W

6200W

6850W

Number of independent MPPT

                                                                                                          2

Number of DC inputs

                                                                                            1 for each MPPT

Max input voltage

                                                                                                       1000V

Start-up input voltage

                                                                                                       180V

Rated input voltage

                                                                                                       600V

MPPT voltage range

                                                                                                   160-960V

Full load DC Voltage range

160-850V

240-850V

380-850V

480-850V

575-850V

Max inpt curnt/MPPT







                          11A/11A

Rated power

3000W

5000W

8000W

10000W

12000W

Max AC power

3300VA

5000VA

8800VA

11000A

13200VA

Max. output current

4.8A

8.0A

12.8A

15.9A

19.1A

Nominal grid voltage



              3/N/PE,220/380Vac,230/400Vac,240/415Vac

Grid voltage range

                                        310Vac-480Vac(According to local standard)

Nominal Frequency

50Hz/60Hz

Grid Frequency Range



 45 Hz-55Hz/54Hz-66Hz(According to local standard)



Active pwr Adjustable range
0~100%

THDI

<3%

Power factor

1(adjustable +/-0.8)

Power limit export
Zero export or adjustable power limit export

Max.efficiency

98.0%

98.0%

98.3%

98.3%

98.3%

Euro weighted efficiency

97.5%

97.5%

98.0%

98.0%

98.0%

Self-Consumption at night
<1W

MPPT efficiency

>99.9%

Protection Devices

DC reverse polarity protection

yes

yes

yes

yes

yes

DC switch

Yes

Safety Protection

Anti islanding, RCMU, Ground fault monitoring

ARPC

Anti reverse power controller

Communication

Power management unit
According to certification and request

Std communication mode

RS485,Wifi/Ethernet/GPRS(Optional),SD card

Operation data storage

25 years

General Data











Ambient temparature
-25°C~+60°C
Max Operating altitude
2000

Weight

21 kg

21 kg

22 kg

22 kg

22 kg

Dimension

457*452*202m m

Display
LCD Display

Warranty

5 years/7 years/10 years

Standard











EMC

EN 61000-6-1, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 61000-3-12, EN 61000-3-11

Safety Standards

IEC62109-1/2, IEC62116, IEC61727, IEC61683, IEC60068(1,2,14,30), IEC60255

Grid Standards

AS/NZS 4777, VDE V 0124-100, V0126-1-1, VDE-AR-N 4105, CEI 0-21, EN50438/EN50549, G83/G59, Rd1699, UTE C15-712-1, EN50530, NB/T32004

Flyline Solar On-grid Inverter Details :-Click Here

Pictures of Flyline Solar On-grid Inverter:-Click Here

Flyline Solar Ongrid Inverter PDF Download : Click Here

Product Short Informative Videos:- Click here


Product Detailed Informative Videos:- Click here


Useful technical informative videos:- Click here
